Introduction

GDB file refers to the storage format of File Geodatabase, which is developed by Esri and used in its ArcGIS platform. It is one of the common spatial data management formats in the current Geographic Information System (GIS). File Geodatabase provides an efficient way to store, manage and query various spatial data. Unlike traditional single file storage, GDB file is a folder structure containing multiple files, which can store vector data, raster data and non-spatial table data.

File Structure

GDB files mainly exist in the form of folders, and each database is stored in a separate folder. Supports large datasets, with a single table or feature class up to 1TB. Provides spatial index and topology rule support, suitable for complex geographic data modeling.

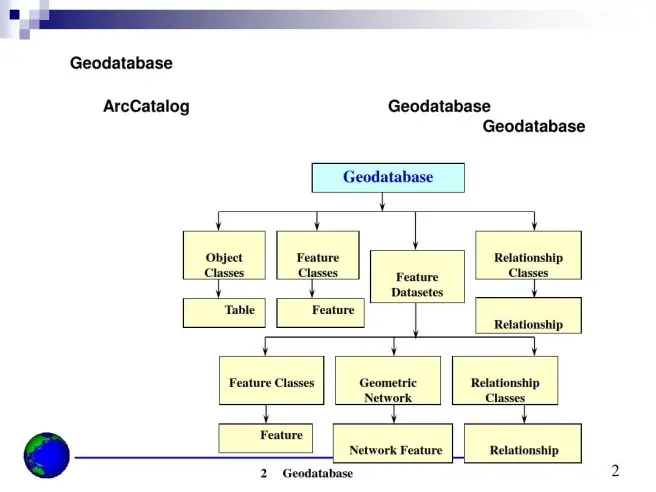

Core content

Feature Class

Used to store vector data (points, lines, polygons, etc.), each feature class is similar to a layer in traditional GIS data.

Feature Dataset

Contains multiple related feature classes, allowing shared spatial references and topology rules.

Raster Dataset

Used to store raster image data, such as satellite images or digital elevation models (DEM).

Tables

Store non-spatial attribute data and can be associated with feature classes.

File structure

The GDB folder contains a series of binary files, which users usually do not directly operate on, but access and manage through GIS software.

Spatial reference

File Geodatabase supports multiple coordinate systems (such as WGS84, UTM, etc.) and allows projection conversion between different coordinate systems.

Data storage format

Data is stored in binary form, with efficient compression and storage capabilities, and can include metadata.

Pros

1. Efficient storage: Compared with traditional Shapefile, GDB files can store large amounts of data more efficiently, support data compression, and save disk space.

2. Support complex analysis: Support advanced GIS functions such as spatial indexing, topology validation, and network analysis, suitable for complex spatial analysis tasks.

3. Data integrity: Provides a database-style storage method that supports multiple feature classes to share spatial references, reduce redundant data, and improve consistency.

4. Large-scale data management: A single table or feature class supports up to 1TB, and the entire File Geodatabase can support tens of TB of data, which is suitable for large-scale data management.

5. Easy to share and migrate: File Geodatabase stores data in the form of a single folder, which is easy to copy, back up, and share.

Cons

1. Closed: File Geodatabase is an Esri proprietary format. Although Esri provides API support, its compatibility with other non-Esri platforms is relatively poor.

2. Cross-platform limitations: The performance and functions of File Geodatabase usually rely on the ArcGIS platform, and its support in open source GIS software (such as QGIS) is limited and not comprehensive.

3. Binary storage cannot be directly edited: Data is stored in binary form, and users cannot directly access or edit the original file. GIS software is required for operation.

4. Learning cost: Compared with traditional GIS file formats, the management and operation of GDB files may have a certain learning curve for beginners.
