SID(MrSID, Multi-Resolution Seamless Image Database)

GISBox is a one-stop 3D GIS data editing, conversion and publishing platform that supports editing in multiple GIS formats such as OSGB/GEOTIFF/RVT, converting to 3DTiles/Terrain and publishing.

Introduction

SID (MrSID, Multi-Resolution Seamless Image Database) is a raster data format specially designed for the storage and distribution of geospatial images, developed by LizardTech in the United States. It is well-known for its efficient image compression technology and is widely used in industries that need to store and transmit large-scale image data, such as geographic information systems (GIS), remote sensing, and mapping.

The SID file format can significantly reduce the size of image files through lossless or lossy compression technology while maintaining the visual quality of the image, thereby saving cost and time in storage and distribution.

File Structure

Compression technology

SID uses a layered wavelet compression algorithm, allowing users to choose lossless or lossy mode during the compression process.

Lossless mode: The image can be completely restored without information loss.

Lossful mode: Set the compression ratio according to user needs to achieve higher compression efficiency within an acceptable quality loss range.

Layered storage

SID files support multi-resolution storage and can quickly access different resolutions of images. Users can choose to load the resolution that suits their current needs, reducing loading time and computing resource consumption.

File extension and compatibility

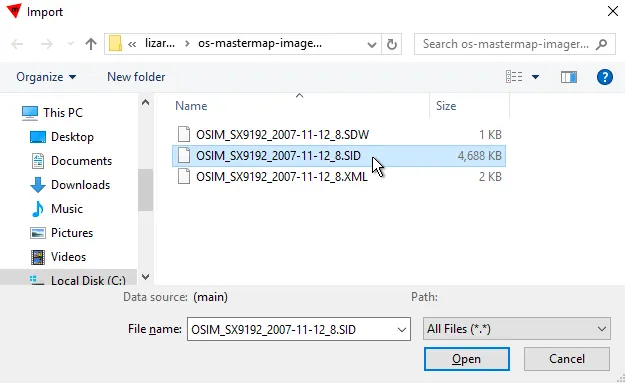

Extension: usually .sid.

Compatibility: widely supports mainstream GIS software such as ArcGIS, QGIS, and Global Mapper.

Metadata support

SID files can embed rich metadata, including the geographic coordinate information of the image (usually GeoTIFF tags), enabling seamless integration with GIS systems.

Pros

**1. Efficient compression: **Reduce file size to 5% or even less of the original image without significant quality loss, saving storage space and speeding up transmission.

2. Multi-resolution support: allows users to load data with appropriate resolution on demand, which is particularly suitable for processing large-scale images or using in low-bandwidth environments.

3. Wide compatibility: Most mainstream GIS and remote sensing software support the SID format, making it easy to use on various platforms.

4. Excellent image quality: Even at a high compression ratio, the image quality of SID files can be maintained at a high level, which is suitable for visual analysis and presentation.

5. Geo-reference capability: supports geographic reference information, is highly integrated with GIS applications, and is suitable for geospatial analysis and visualization.

Cons

1. Patent restrictions: The SID format is proprietary to LizardTech, which means that users need to use its authorized software to create or edit it.

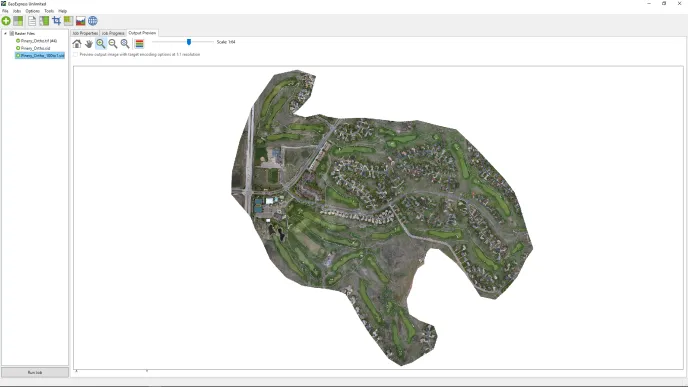

2. High creation cost: Generating SID files requires the use of LizardTech’s specific tools, such as GeoExpress, which usually require the purchase of commercial licenses.

3. Limited format scalability: The SID format is mainly for image data and cannot directly store vector data or other non-image data.

4. The compression process takes a long time: Although storage and transmission efficiency are high, it may take more time and computing resources to compress large images.

Application Scenario

In the field of remote sensing, the SID format is often used to store and distribute high-resolution satellite images and aerial photography, especially when studying changes in surface features and land use patterns. Through its efficient compression and multi-resolution capabilities, it can quickly process large-scale data.
