QGS
GISBox is a one-stop 3D GIS data editing, conversion and publishing platform that supports editing in multiple GIS formats such as OSGB/GEOTIFF/RVT, converting to 3DTiles/Terrain and publishing.
Introduction
QGS file is one of the standard formats of QGIS (Quantum GIS) software project files. It is an XML-based text file used to save QGIS project configurations, including data sources, layer styles, map views, coordinate reference systems, and other settings. The QGS file itself does not contain geographic data, but records how to reference and render external spatial data (such as vector files, raster data, databases, etc.).
File Structure
QGS files are plain text files that use the XML (Extensible Markup Language) format. The file contains:
- Data source path: points to external data files (such as Shapefile, GeoTIFF, database, etc.).
- Coordinate Reference System (CRS): Coordinate system definition of projects and layers (such as EPSG:4326).
- Layer style and properties: including rendering settings such as color, label, symbolization, scale range, etc.
- Map view: saves the zoom level and visible range of the current map canvas.
- Layout and printing configuration: map layout, printing style, etc.
Pros
1. Lightweight: QGS files are in plain text format, small in size, easy to edit and share.
2. Highly readable: Using XML structure, the file content can be directly viewed and edited through a text editor.
3. Highly configurable: Save project configuration, including data source, style, layout, etc., to facilitate project recovery and sharing.
4. Flexible data reference: Supports multiple spatial data formats and data sources, and can easily integrate vector, raster and database data.
5. Cross-platform compatibility: QGS files can be opened using QGIS on different operating systems (Windows, macOS, Linux).
Cons
1. Does not contain data: The QGS file itself does not store data, only the data source path. When data is lost or the path is changed, the project may not open properly.
2. Depends on external data files: If there are too many referenced data files or the path is complex, project management becomes difficult.
3. Susceptible to path: When opening a project on a different computer or system environment, you may need to manually fix the data path.
4. Performance limitations for larger projects: When a project contains a large number of data layers, loading and rendering performance may decrease.
Application Scenario
QGS files are widely used in various workflows of geographic information systems (GIS), especially in data visualization, spatial analysis, map production, and project sharing.
Example
- QGS file example.

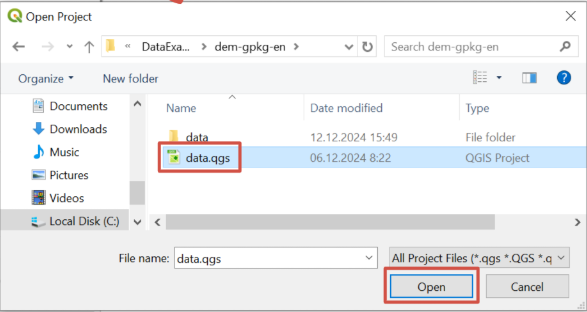

- Open QGS file.
File Opening Mode

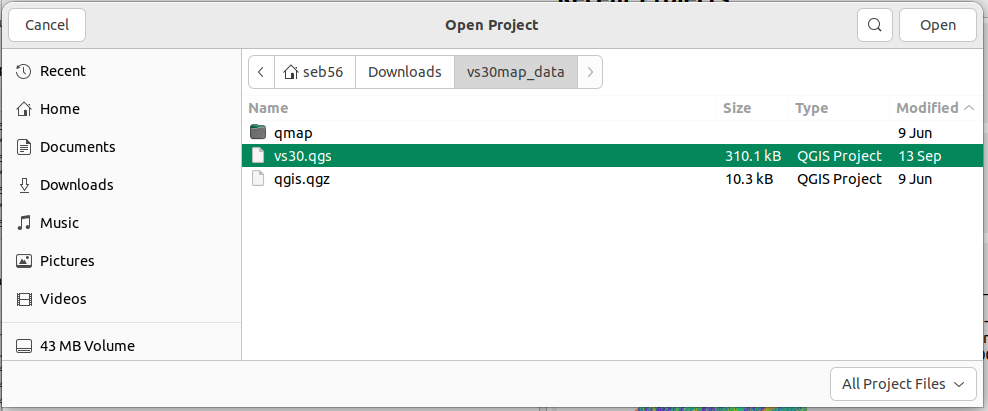

- QGS file opened in QGIS.
