Introduction

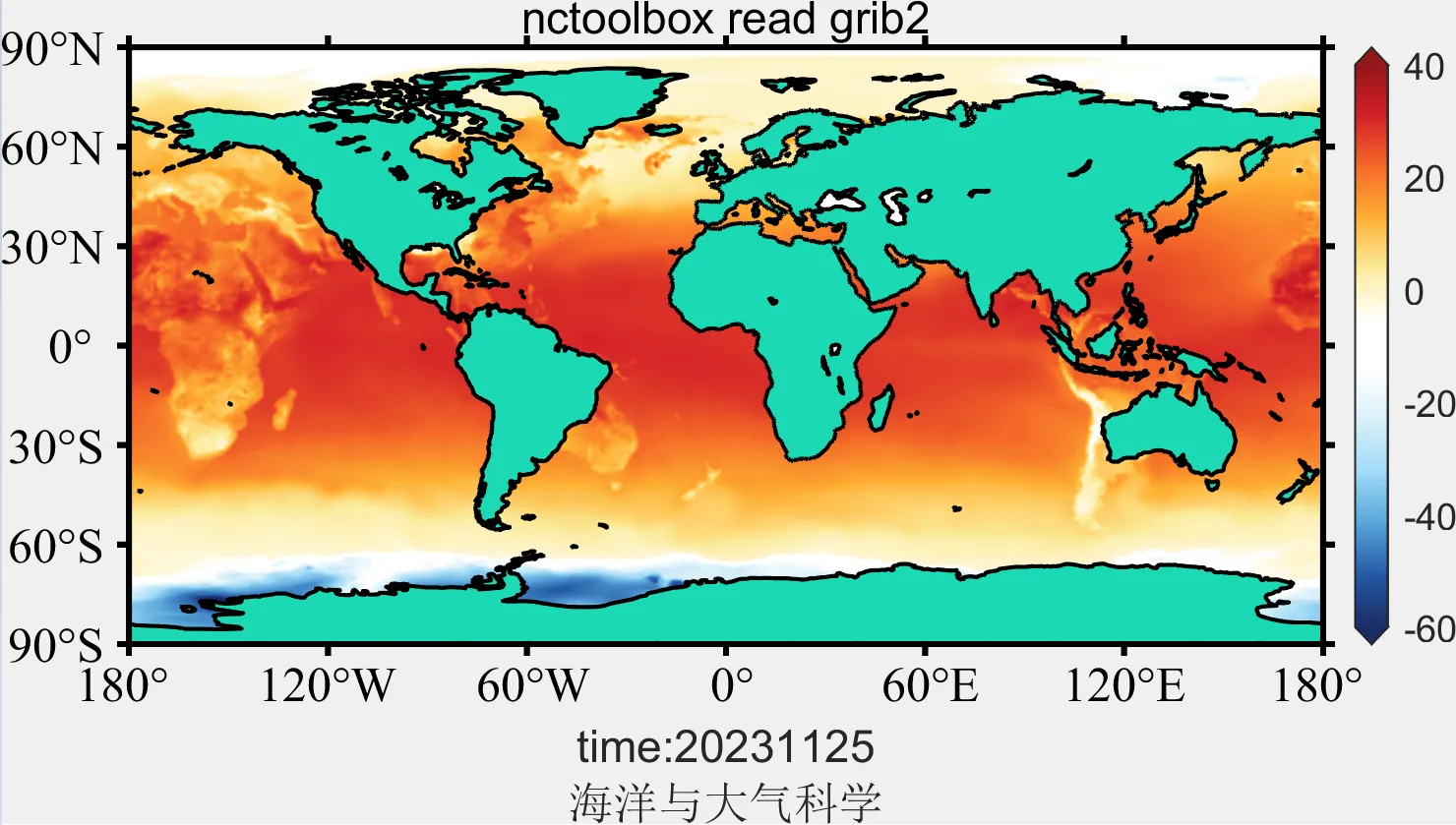

GRIB (GRIDded Binary) is a standard file format for storing and transmitting meteorological data, designed by the World Meteorological Organization (WMO). It is mainly used to describe rasterized meteorological data, such as temperature, humidity, wind speed, precipitation, etc. GRIB files store data in binary form, which is efficient and has a high compression rate, so it has become one of the main data formats in the meteorological field.

File Structure

File Header

Describes the version, timestamp, data source and other information of the entire GRIB file.

Record Section (Messages)

GRIB files contain multiple independent data records, each of which corresponds to the distribution of a variable (such as temperature) within a specific time and space range. Each record consists of the following parts:

Indicator Section: Indicates the record type, total length, version and other information.
Identification Section: Defines the time, data source, coordinate system, etc. of the data.
Grid Description Section: Describes the spatial resolution and grid layout of the data (such as latitude-longitude grid).
Product Definition Section: Describes the physical properties of the data (such as temperature, wind speed), units, timeliness, etc.
Data Representation Section: Defines the encoding method of the data (such as compression algorithm).
Bitmap Section (Bitmap Section, optional): Indicates whether there is valid data at the grid point.
Data Section: Stores the actual meteorological data value.

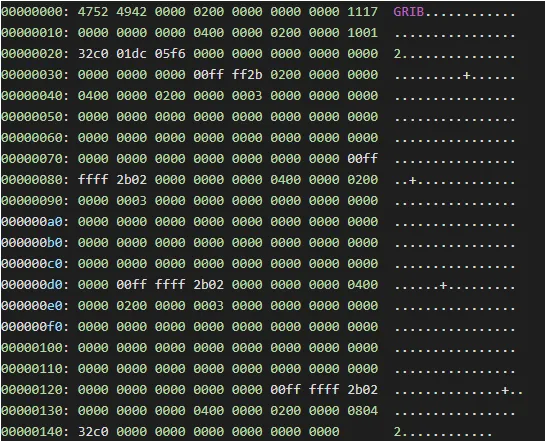

Binary storage

Data is stored in an efficient binary format, supporting different compression algorithms (such as PNG compression of GRIB2) to reduce storage space requirements.

Pros

1. Efficient storage and transmission: GRIB files use binary format, have high storage efficiency, support data compression (such as JPEG, PNG), and are particularly suitable for processing massive meteorological data.

2. Rich metadata: GRIB files contain detailed metadata that can describe key information such as time, space, parameters, units, etc., which is easy to parse and use.

3. Widely supported: Widely supported by major tools and libraries in the fields of meteorology and environmental science (such as WMO standards, GDAL, and ECMWF’s ecCodes library).

4. Flexible scalability: GRIB2 supports custom parameters and higher precision, adapting to a variety of application scenarios.

Cons

1. Complex parsing: The GRIB file structure is complex and requires professional tools (such as wgrib, ecCodes) to decode and use.

2. Unintuitive: Since the data is stored in binary form, users cannot directly view the content and require a specialized parser.

3. Challenges in large-scale data processing: In the analysis of data over a large range of time and space, although GRIB data is efficient, it still requires powerful computing resources and optimization technology support.

Application Scenario

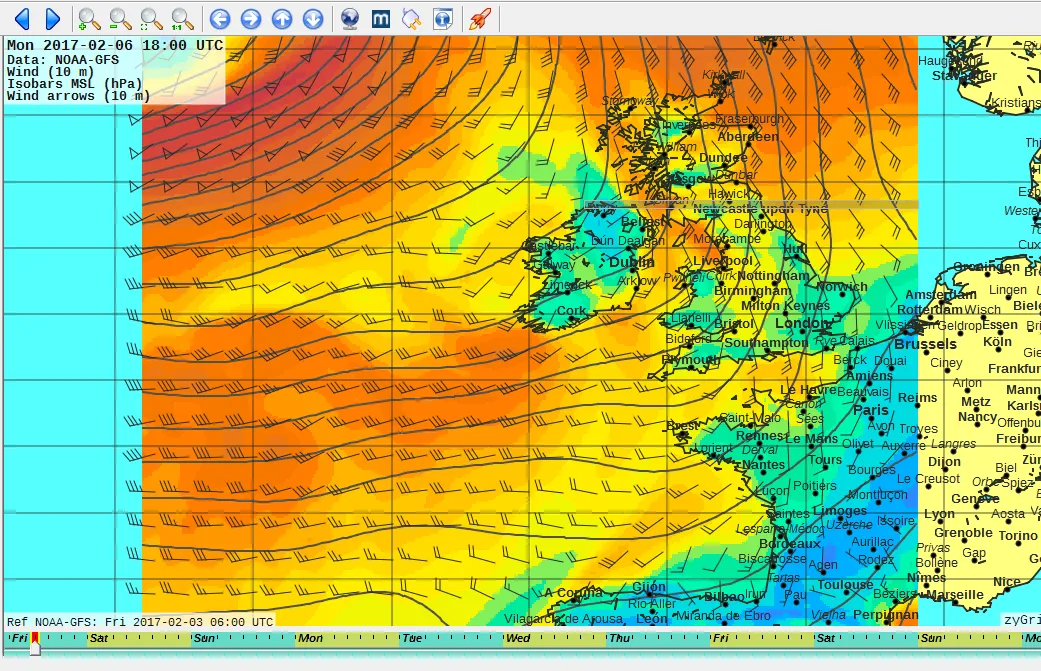

GRIB files are widely used in meteorology and environmental sciences to store and disseminate numerical weather forecast data. They support three-dimensional time series analysis and can describe multi-level meteorological information from the surface to high altitudes. In weather forecasting, GRIB data is used to model and predict global and regional weather systems; in environmental monitoring, GRIB files are used to track air quality, ocean conditions, and extreme climate events.
