Web Coverage Service (WCS)

GISBox is a one-stop 3D GIS data editing, conversion and publishing platform that supports editing in multiple GIS formats such as OSGB/GEOTIFF/RVT, converting to 3DTiles/Terrain and publishing.

Introduction

**Web Coverage Service (WCS) **is a geographic information service protocol based on the Open Geospatial Consortium (OGC) standard. It is designed to provide raster data (Coverage Data), allowing users to access and obtain geospatial coverage data through the Internet. Coverage data contains physical quantities or phenomena related to space, such as temperature, rainfall, altitude, etc. These data are usually stored in the form of regular grids or irregular grids, and are widely used in environmental monitoring, meteorological analysis, remote sensing data sharing and other fields.

Data Format Overview

WCS supports a variety of raster data formats to suit different user needs and software tools. These formats typically include:

1. GeoTIFF

A high-resolution raster data format that supports geographic coordinates and is widely used in remote sensing image processing and geographic data analysis.

2. NetCDF

A multidimensional array format suitable for scientific computing, commonly used for meteorological, oceanographic and climate data.

3. HDF (Hierarchical Data Format)

Supports the storage and organization of large-scale, multidimensional data, suitable for complex earth science data.

4. PNG, JPEG

Image formats suitable for lightweight applications, used for fast preview and low-resolution data transmission.

5. ASCII grid file

Provides a simple text format for basic data exchange and analysis.

Pros

**1. Flexible data acquisition: **supports users to select specific time, spatial range and parameters as needed, reduces unnecessary data transmission, and saves bandwidth and storage resources.

**2. High data compatibility: **supports multiple standardized data formats and seamlessly integrates with mainstream GIS and scientific computing software, such as QGIS, ArcGIS, MATLAB, Python, etc.

**3. Open standards: **based on OGC standards, it has good interoperability and is suitable for cross-platform and cross-organization data sharing and collaboration.

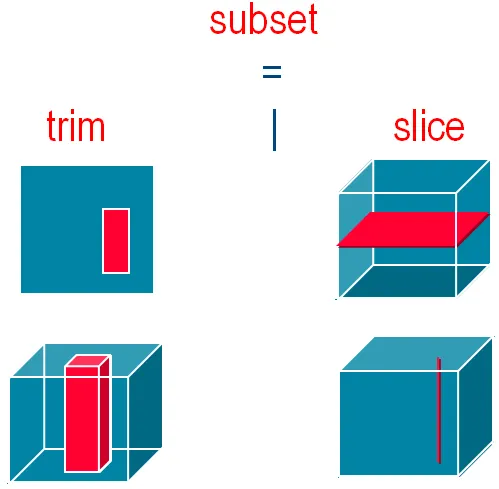

**4. Multifunctional data access: **provides functions such as data subset extraction, format conversion, time series analysis, etc., and supports complex data operations and secondary development.

**5. Real-time and dynamic data support: **can provide real-time or near-real-time raster data, which is very suitable for fields such as weather forecasting and environmental monitoring.

Cons

**1. Configuration complexity: **The deployment and configuration of the server is relatively complex, especially when large-scale, high-resolution data needs to be processed, which requires high hardware and software requirements.

**2. Limited transmission performance: **For large-scale data sets, the transmission efficiency may be limited by the network bandwidth, resulting in data acquisition delays.

**3. High user learning cost: **For non-professional users, there may be a certain threshold to understand and use the data model and query syntax of WCS.

**4. Data privacy and security: **Data sharing may involve sensitive information, and how to protect data privacy and security is an issue that needs to be considered.

Application Scenario

In environmental monitoring, WCS is used to provide dynamic air quality data and water quality information to help decision makers formulate effective governance policies.
