Introduction

**GML **(Geography Markup Language) is an XML standard defined by the Open Geospatial Consortium (OGC) for storing and exchanging geographic information. As one of the core standards for geographic information systems (GIS) and spatial data infrastructure (SDI), GML provides a universal, text-based encoding method for complex geographic data models. It allows users to describe geometric shapes (such as points, lines, polygons), geographic features, attributes, and topological relationships, facilitating data sharing and interoperability between different systems.

Data Format Overview

GML, as a general, text-based encoding method, mainly includes the following geometric types:

1. Feature: A core concept in GML that describes real-world phenomena, that is, an abstraction of a certain phenomenon in the real world.

2. Coordinate Reference System: Used to define the spatial location of geographic features.

3. Geometry: Describes the geometric shape and size of geographic features, such as points, lines, and surfaces.

4. Topology: Describes the spatial relationship between geographic features, such as adjacency and inclusion.

**5. Time: **Used to describe the time attributes of geographic features, such as timestamps and time intervals.

6. Units of Measure: Used to define the units of measure of the attribute values of geographic features, such as meters, kilometers, degrees, etc.

7. Generalized Values: Used to describe the range and type of attribute values of geographic features, such as integers, floating-point numbers, strings, etc.

Pros

1. Standardization: GML is an open standard supported by OGC and ISO, with good interoperability and universal applicability.

2. Scalability: The XML-based structure enables GML files to be easily extended and integrated to meet different application requirements.

3. Flexible data description: Supports descriptions of multiple spatial reference systems, coordinate systems, and geographic object types to meet various geographic analysis requirements.

4. Complexity support: GML can describe complex spatial geometry, topology, and attributes, providing support for refined geographic information modeling.

**5. Data interoperability: **Suitable for cross-platform data transmission and sharing, and can be seamlessly integrated with other GIS software (such as ESRI ArcGIS, QGIS) and database systems.

Cons

1. Performance issues: XML format has a large amount of data, which is not suitable for high-performance application scenarios. It has a slow parsing speed and occupies a large amount of file storage space.

2. Learning curve: GML structure is relatively complex, involving a large number of XML tags and geographic data concepts, and understanding and using it requires professional knowledge.

3. Limitations: Although suitable for transmission and exchange, due to the text characteristics of XML, it is difficult to use for efficient geographic data storage, compression and indexing.

4. Low storage efficiency: GML files are relatively lengthy and less efficient than binary formats (such as GeoPackage or SHP), making them unsuitable for storing large-scale geographic data.

Application Scenario

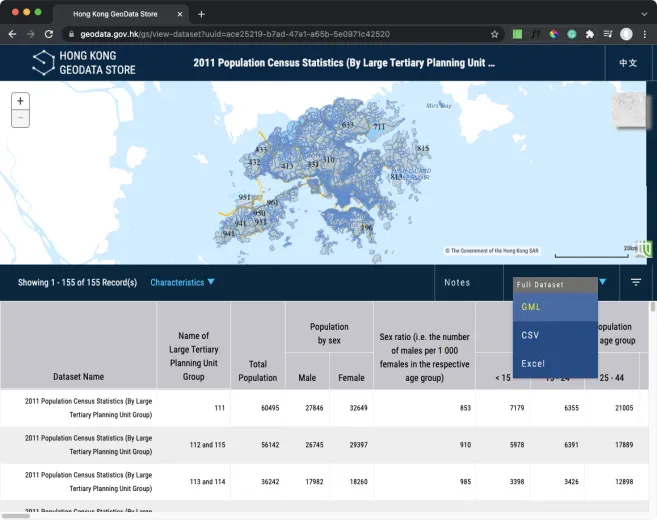

GML is widely used in various scenarios that require standardized geographic data, and in data sharing and conversion between different GIS platforms. For example, in data exchange between national geographic information departments, GML provides a unified way to represent geographic information. Online GIS services (such as WFS - Web Feature Service) usually use GML format to transmit geographic feature data, which is convenient for different clients to access. In the spatial data infrastructure (SDI), GML is used to share cross-organizational and cross-regional geographic information, such as environmental monitoring data, hydrological data, etc. In municipal management, GML is often used to describe the location and attributes of municipal facilities and infrastructure (such as roads, water and electricity facilities, etc.) to provide support for urban digital management.
