ECW(Enhanced Compression Wavelet)

GISBox is a one-stop 3D GIS data editing, conversion and publishing platform that supports editing in multiple GIS formats such as OSGB/GEOTIFF/RVT, converting to 3DTiles/Terrain and publishing.

Introduction

**ECW **(Enhanced Compression Wavelet) is an image compression format designed to efficiently compress and store large-scale raster image data, especially for remote sensing images and map data. The ECW format compresses image data using wavelet transform technology to reduce the volume of data while maintaining image quality as much as possible. The ECW file format was developed by Earth Resource Mapping (now Hexagon Geospatial) and is widely used in geographic information systems (GIS) and remote sensing fields.

File Structure

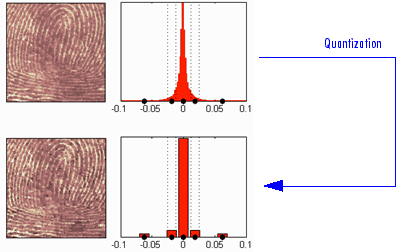

The ECW format is based on the wavelet compression algorithm. It decomposes the image data into multiple frequency components for encoding, and retains the structural information of the image during the compression process. ECW files consist of multiple data blocks, which can be decoded independently, making it very efficient when processing large-scale images. ECW files usually contain three main parts:

Header information: Contains metadata about image size, resolution, color depth, etc.
Compressed data: Image data compressed by the wavelet compression algorithm, which is usually much smaller than the original image data.
Index data: Index data that helps decode and display images, usually used to speed up image loading and browsing.

The ECW format supports different compression levels, allowing users to trade off between image quality and compression rate. It also supports multiple resolution levels so that the displayed image details can be adjusted as needed.

Pros

1. High compression rate: ECW format uses wavelet compression algorithm, which can significantly reduce the size of image files. It is especially suitable for the storage of remote sensing images and large map data.

2. Support for large-size images: ECW can process large-size raster images, which is particularly suitable for large-scale satellite images or map data commonly found in GIS applications.

3. Fast loading and display: ECW format supports multi-resolution images and can be quickly loaded and displayed at different zoom levels without affecting performance due to large image size.

4. Better image quality: Although it is a compressed format, ECW can retain higher image quality, especially at low compression ratios, the image details are better preserved.

Cons

1. Proprietary format: ECW is a proprietary format that requires a specific decoder or library to use. Some open source software may not support the ECW format, resulting in poor interoperability.

2. The file is not editable: Since ECW is a compressed format, editing directly on this format is not as flexible as editing on raw image files (such as TIFF, JPEG). The file needs to be decompressed before editing, which increases the complexity of the operation.

3. Not supporting all types of images: ECW is mainly suitable for raster images, especially remote sensing images and maps, and may not be applicable to some other types of image data (such as high dynamic range images).ario

Application Scenario

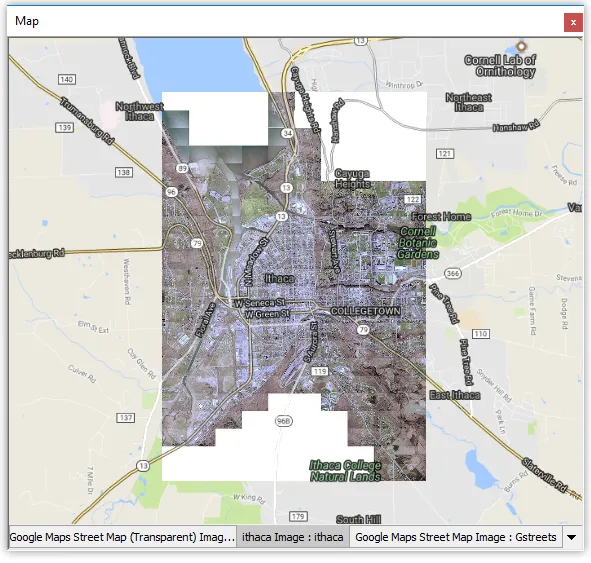

The ECW file format has been widely used in the fields of geographic information systems (GIS), remote sensing image processing, map data storage and management. Especially when a large amount of spatial data needs to be processed, the ECW format provides efficient storage and fast loading capabilities, allowing remote sensing data and map data to be stored and transmitted without sacrificing performance. For example, remote sensing image data is often very large. ECW not only saves storage space through effective compression, but also can quickly present images of various scales in GIS applications, supporting users to quickly browse, analyze and make decisions. In addition, many geographic information platforms (such as Hexagon Geospatial’s ERDAS and Esri’s ArcGIS) support the ECW format, making this format widely used in multiple GIS software.
