TAB(Table File)

GISBox is a one-stop 3D GIS data editing, conversion and publishing platform that supports editing in multiple GIS formats such as OSGB/GEOTIFF/RVT, converting to 3DTiles/Terrain and publishing.

Introduction

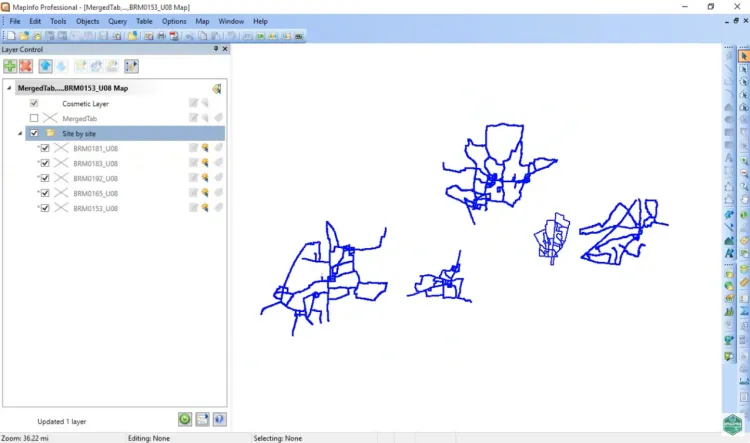

TAB file is a file format used to describe geographic spatial data. It is usually a logical “data table”, but it not only contains tabular data, but also links to other files to provide spatial reference and geometric data. It is the main format for MapInfo software to read and write spatial data. It is suitable for storing vector data types such as points, lines, polygons, and can support topological structures and coordinate information. It is widely used in the GIS industry for its good structure and powerful functions, and can store spatial data and related attribute data.

Data Format Overview

TAB files are usually used with three other files to form a complete GIS dataset:

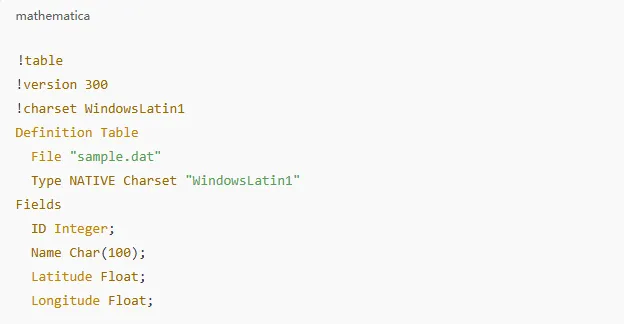

1. .TAB file: contains indexes and structured descriptions of data, used to reference other files.

2. .DAT file: stores attribute data, usually in binary or text format.

3. .MAP file: stores geometric data of spatial objects.

4. .ID file: stores unique identifiers of objects, associated with geometric and attribute data.

Pros

1. Easy integration: TAB format is highly compatible with MapInfo and many GIS software, and can be directly loaded and edited.

2. Multi-file support: logically separate data into different files for easy management and storage.

3. Topology support: can store complex vector data, including polygon nesting and shared boundaries.

4. Efficient query: has faster indexing and query capabilities, suitable for small and medium-sized data sets.

Cons

1. Complex format: The multi-file structure may lead to complex data management and file transfer.

2. File dependency: Losing any one of the files (such as .MAP or .ID files) may render the entire dataset unusable.

3. Limited scalability: Although suitable for small and medium-sized data, it does not perform as well as some modern formats (such as GeoPackage and PostGIS) for very large datasets and real-time applications.

Application Scenario

TAB files are used to store spatial data such as urban roads, buildings, and green spaces to help urban planning departments conduct effective management and analysis. TAB files are used in traffic planning to describe road networks, traffic flows, and traffic control points. In disaster response, TAB files can store evacuation routes, affected areas, and the locations of key facilities to assist in rapid decision-making. They can also be used to record and analyze environmental data, such as river paths, forest distribution, and pollution monitoring.
