Introduction

QML (Qt Meta-Object Language) layer style file is a file format used to define map layer styles. It is one of the domain-specific languages used in the Qt framework to describe and customize the appearance and behavior of UI elements.

In the GIS field, QML layer style files are widely used in Qt-based GIS software and applications to define the rendering and display style of map layers. Through QML layer style files, developers can customize the appearance, annotations, symbols, etc. of map elements to meet various map expression requirements.

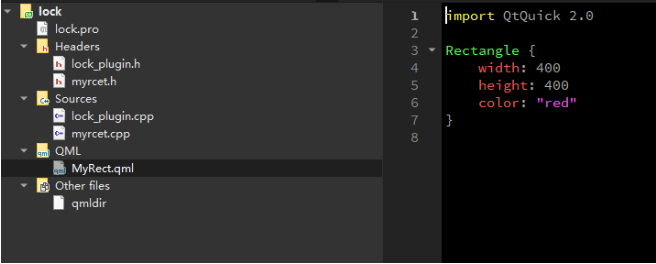

File Structure

A QML file usually consists of the following parts:

Import declaration: specifies the required Qt modules or custom QML components.
Root element: defines the root object of the QML file, usually some kind of visual element (such as Item, Rectangle, etc.).
Property binding: defines the properties of the object and its value.
Child elements: other QML objects nested in the root element.

Pros

1. Declarative design: QML uses a declarative language, allowing developers to describe UI elements and layouts directly in QML files without having to write classes for each component, greatly improving development efficiency.

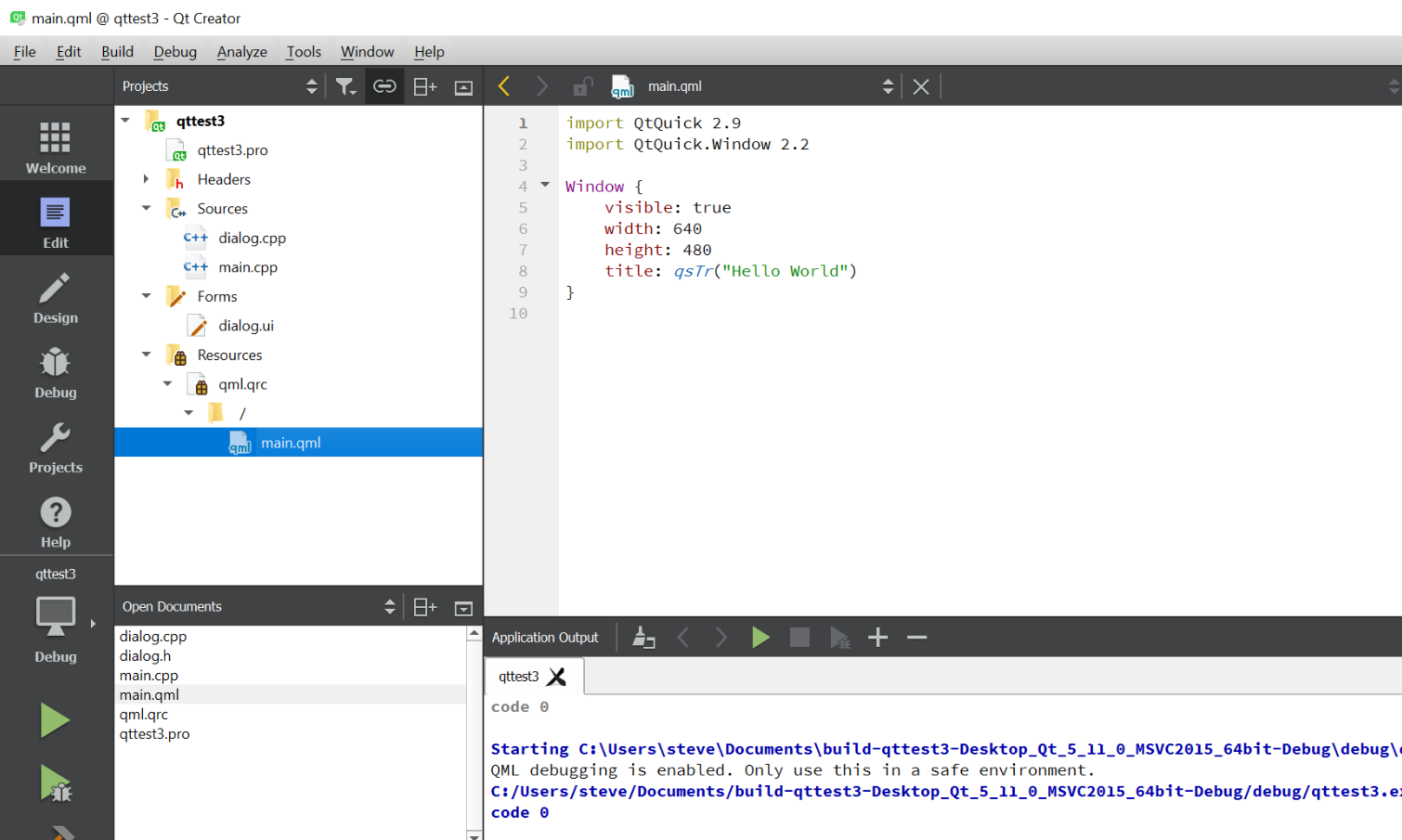

2. Visual development: Using IDEs such as Qt Creator, developers can preview QML designs in real time and see the interface effects without compiling and running, which greatly facilitates the iteration and optimization of the interface.

3. Cross-platform support: UIs built with QML can run on multiple platforms, including desktop, mobile, and embedded devices, achieving true cross-platform development.

4. Responsive design: QML supports building responsive UIs that adapt to different screens through pure CSS, so that the interface can maintain a good user experience on different devices.

**5. Rich animations and effects: **QML has a rich built-in animation system that can easily implement complex UI transformations, making the interface more dynamic and attractive.

6. Good maintainability and reusability: QML allows interface elements to be decomposed into reusable components, making the code structure clear, easy to maintain and expand.

7. Fast iteration: QML has a hot reload function, which allows you to edit and view changes to the interface in real time, speeding up development and debugging.

Cons

1. Performance issues: When processing large amounts of data or complex interfaces, QML’s performance may not be as good as UIs written directly in C++. Especially in computationally intensive tasks such as audio and video encoding and decoding, QML’s performance is limited.

2. Learning curve: QML requires learning new syntax and concepts, which may require a certain amount of adaptation time compared to traditional C++ development. For developers who are not familiar with the QML language and GIS stylization concepts, more learning and familiarization processes may be required.

3. Relatively insufficient community support: Although the Qt community is relatively active, QML’s community support is relatively weak compared to mainstream development platforms. During the development process, it may be difficult to find corresponding solutions and materials.

4. Chinese support issues: There may be some problems with QML file support for Chinese. If Chinese appears in the QML file, garbled characters may appear. This needs to be circumvented by saving the file as UTF-8 with BOM, etc.

Application Scenario

QML layer style files are suitable for various GIS application scenarios, including map making, geographic data visualization, location services, and geographic information display, and can achieve personalized map styles and data visualization effects.
