Introduction

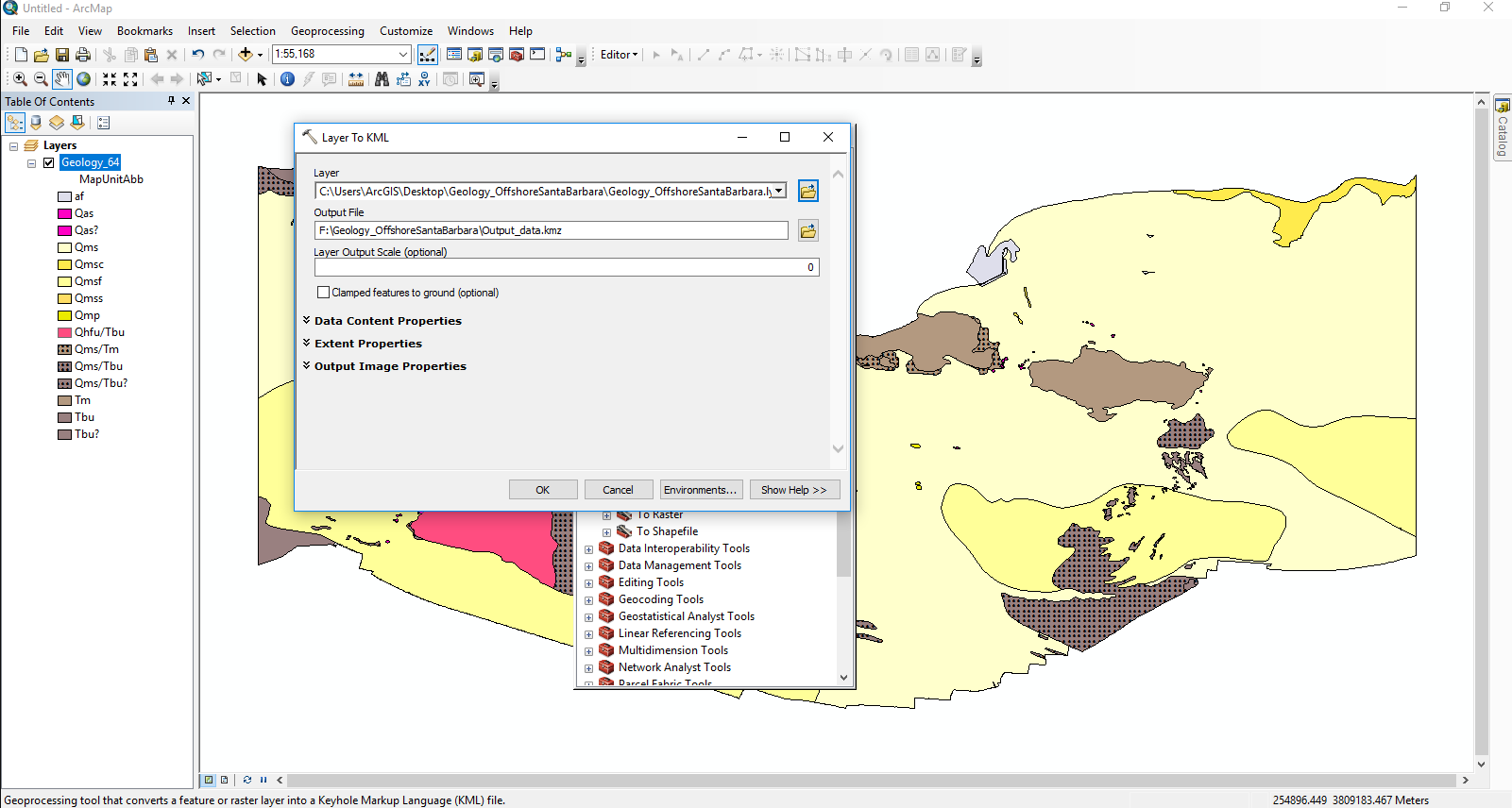

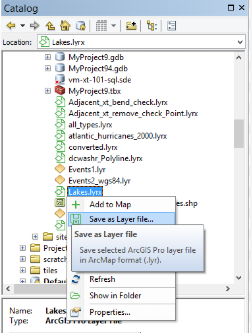

LYR files are a special file format used in Esri ArcGIS software to save layer-related information, usually with a .lyr extension. It does not directly store geographic data, but records information such as the layer’s style, rendering rules, data source path, and display configuration. The main function of LYR files is to associate complex map symbolization, display settings, and data, so that users can quickly apply consistent layer styles in different projects or scenes. In ArcGIS Pro, the function of LYR files is further expanded to LYRX files (ArcGIS Pro layer files), which are compatible with more modern GIS data formats and functions.

File Structure

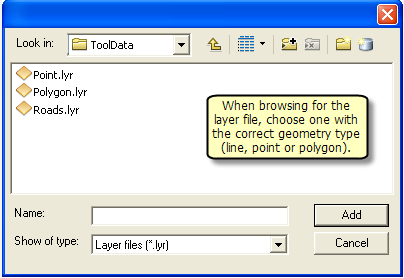

LYR file is essentially a binary file, the content is not visible to the user, and needs to be loaded and edited in ArcGIS environment. Contains the following main information:

**Data source path: **the file or database location pointing to the underlying data, such as Shapefile, GeoDatabase, etc.

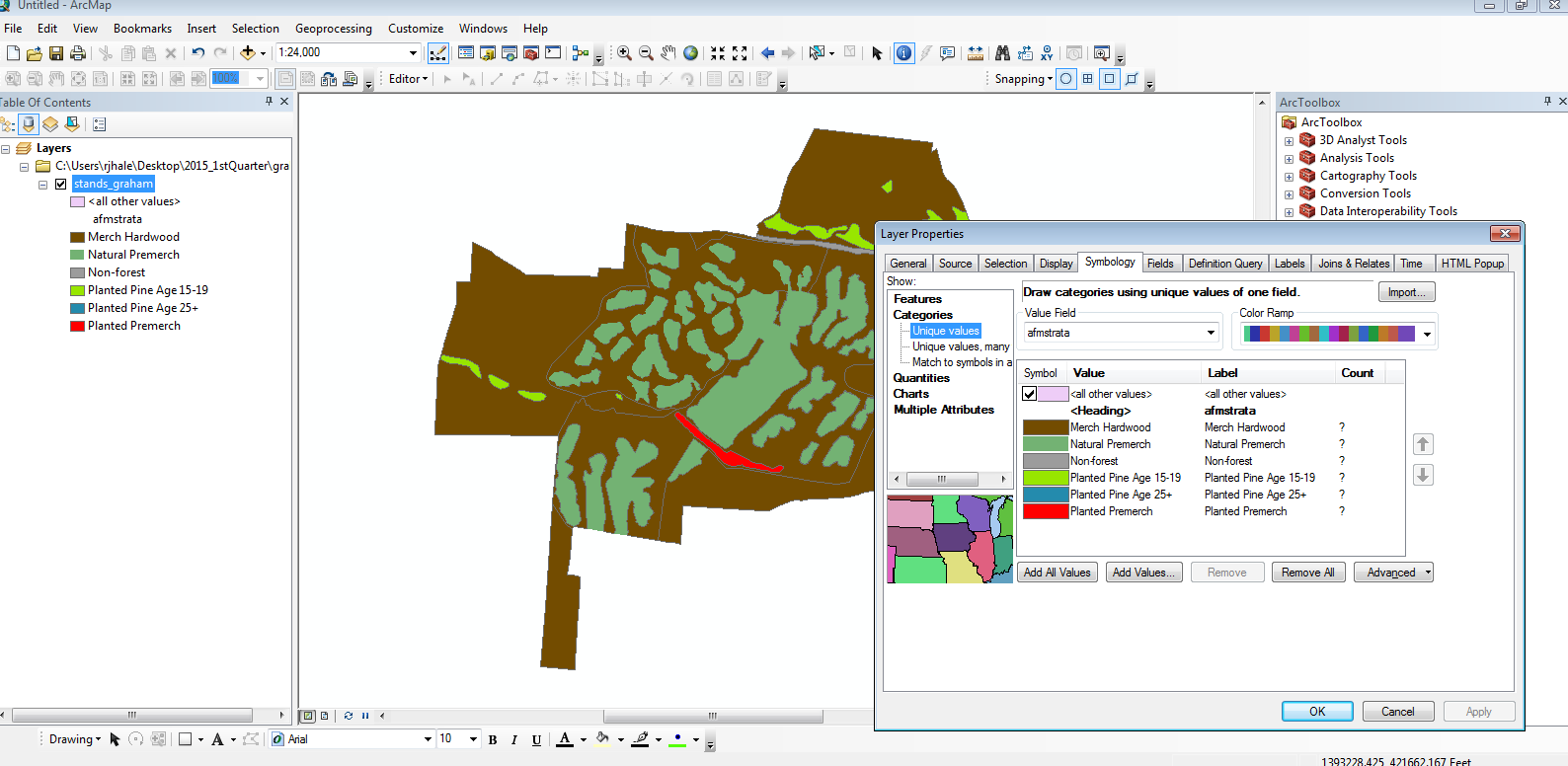

Symbolization rules: including color, line style, fill texture, label and annotation configuration.
Display parameters: scale range, transparency, hierarchical display mode, etc.
Layer properties: field name, field alias, default rendering mode, etc.

Pros

1. Symbolization separation: Separate symbolization from original data to avoid destructive operations on original data, and reuse the same style in different projects.

**2. Rapid reuse of visualization configuration: **users can quickly apply predefined styles, colors, and layer configurations to other maps, greatly improving work efficiency.

3. Support complex rendering: Allows definition of hierarchical rendering, segmented colors, and multi-field symbolization, suitable for complex data display requirements.

4. Centralized management: In team collaboration, LYR files are used as style templates to maintain the consistency of map symbols and display configurations, and improve the unity of the project.

Cons

1. Strong data dependency: LYR files only save the data source path, and the data itself is not stored in the file. Once the data source location changes (such as file movement or database update), the LYR file will become invalid and the path needs to be repaired manually.

2. Subject to Esri software: LYR files are proprietary formats and cannot be used or edited directly in non-Esri software, limiting cross-platform flexibility.

3. Closed file structure: Since LYR files are in binary format, users cannot modify their configuration by directly editing the file content and must rely on ArcGIS software to complete the modification.

Application Scenario

LYR files are mainly used in GIS projects to improve the efficiency and standardization of map production. In the fields of land management, urban planning, environmental monitoring, etc., it is used to save and apply standardized symbolization rules to ensure the uniformity of map styles in team collaboration.
