General Imagery
GISBox supports automatic tiling and publishing in formats such as “GEOTIFF”. (Click to view the Imagery Tiling tutorial)

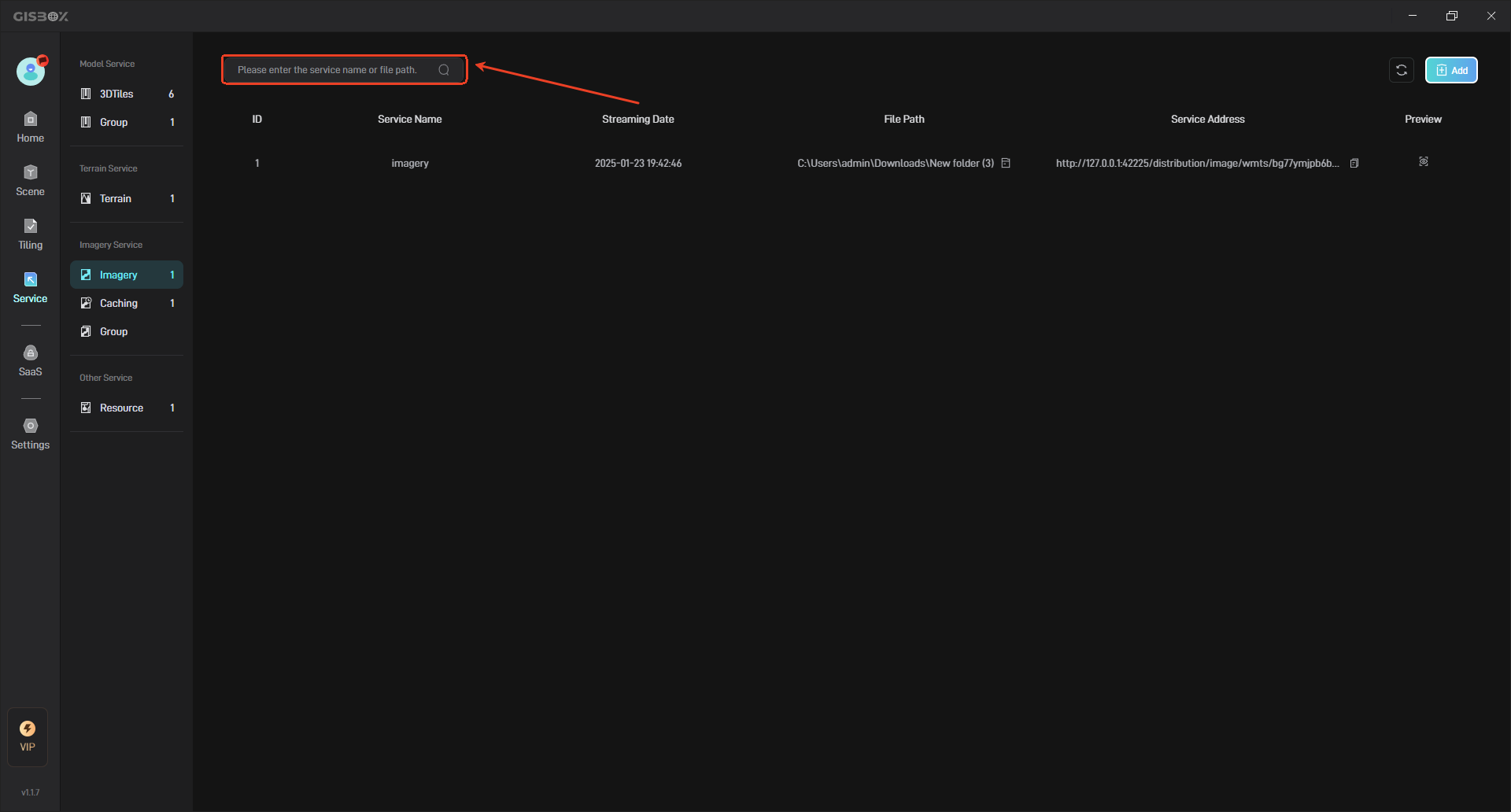

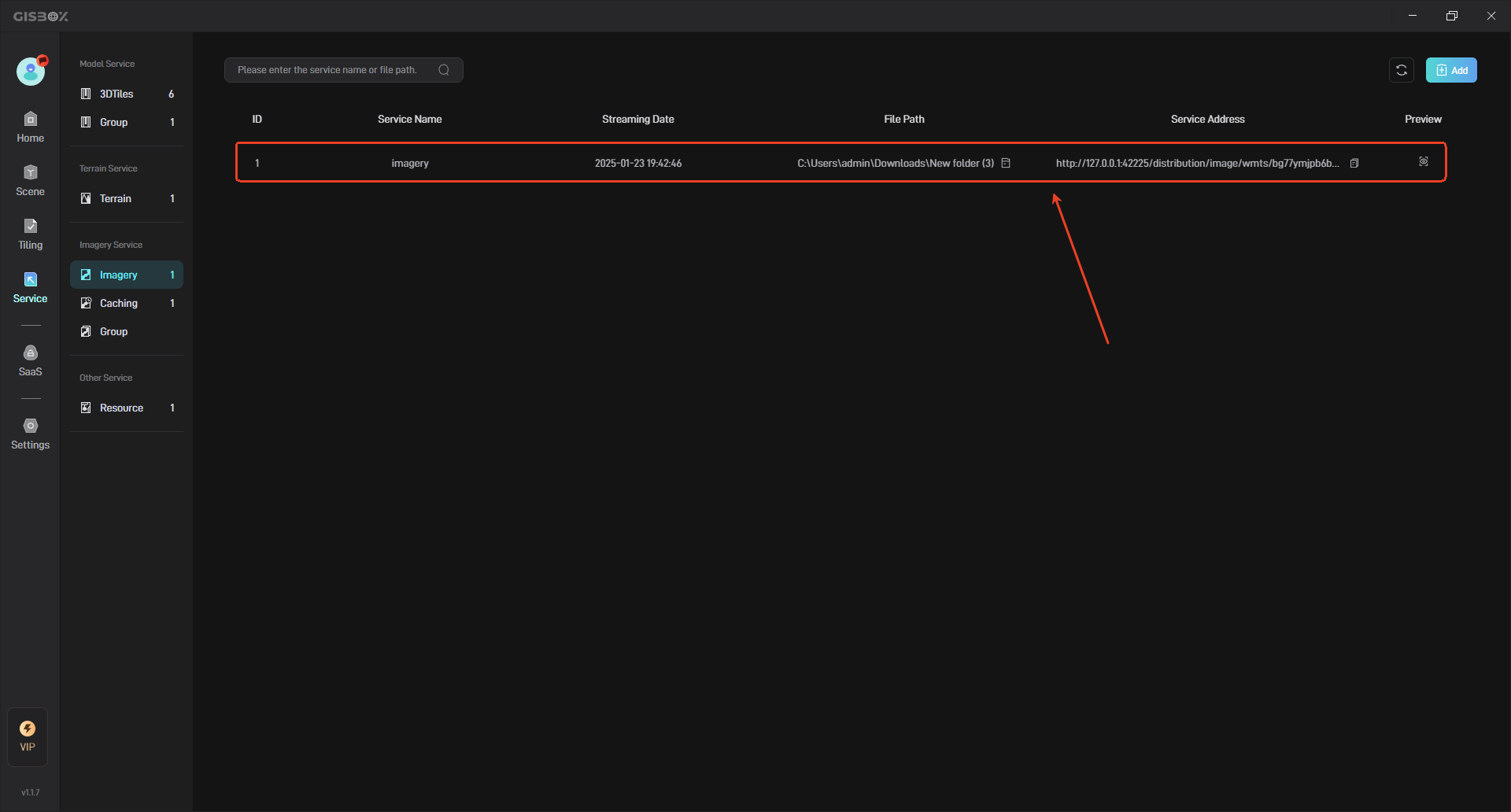

The generated image service can be viewed in the “General Imagery” in the “Distribution” interface, as shown in the following figure:
1. Add Imagery Service
There are two ways to add imagery services. One is to enable the **”Publish as Service at the same time” **setting during imagery tiling. When the imagery tiling task is completed, the corresponding imagery service will be automatically generated. The other way is to manually add the imagery tile data and then generate the corresponding imagery service.
1.1 Publish as a service at the same time

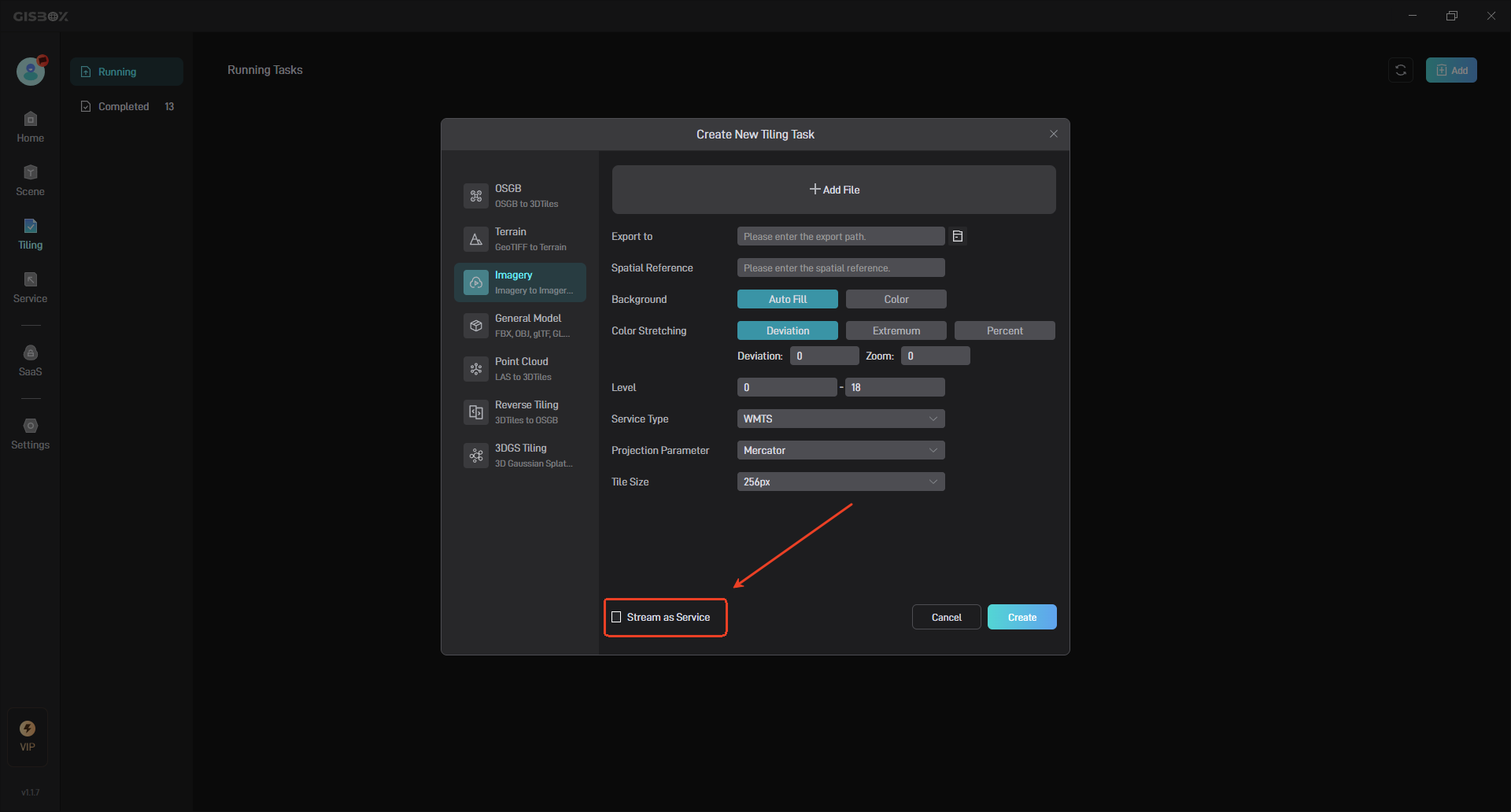

When tiling a imagery file, you can publish it as a service at the same time, as shown in the following figure:

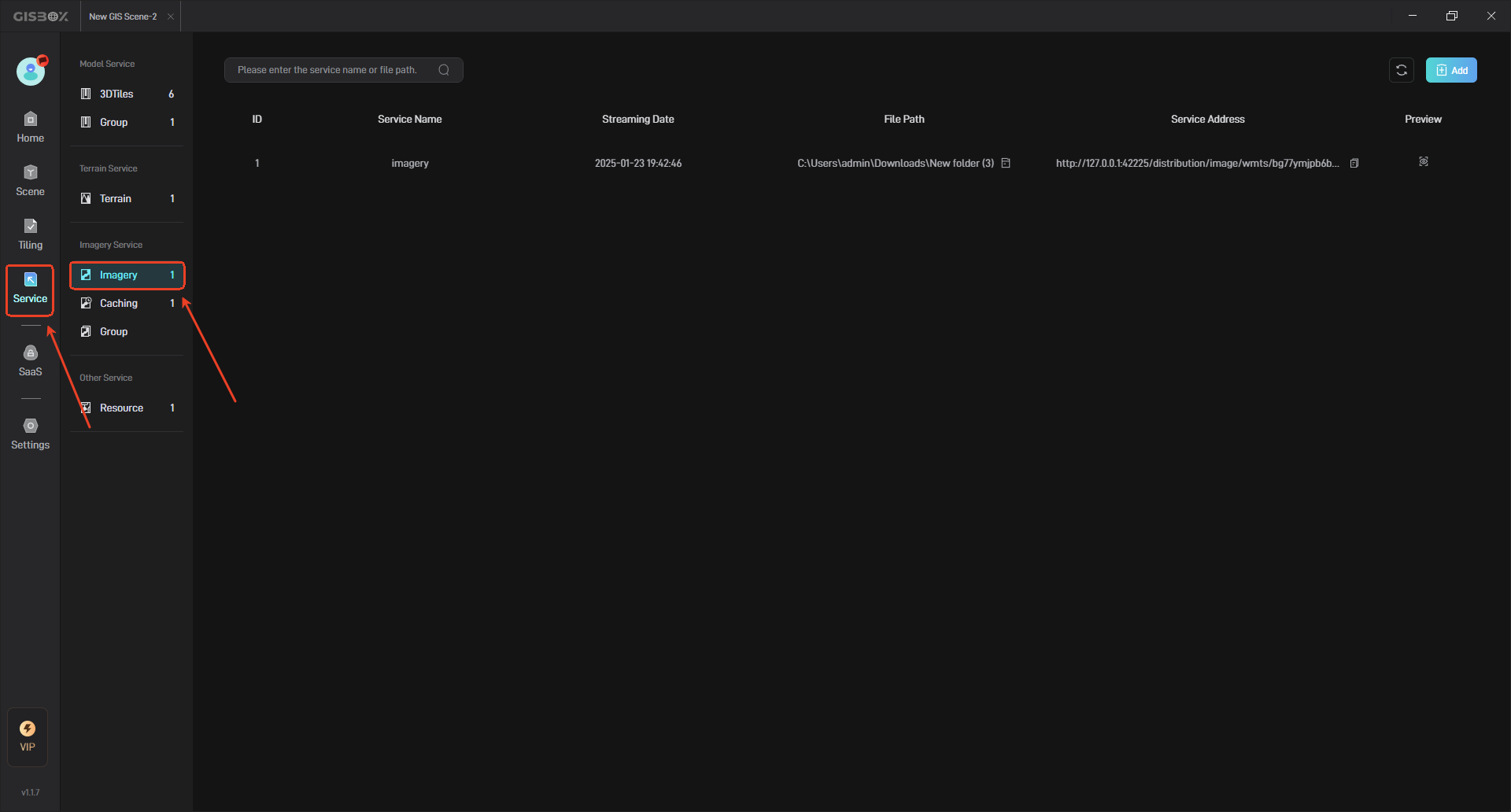

Click “General Imagery” in the distribution on the left to see the automatically generated imagery service, as shown in the following figure:
1.2 Add Manually
When tiling a imagery file, if the “Publish as service at the same time” setting is not checked, you need to manually add the general imagery data and then generate the corresponding imagery service.

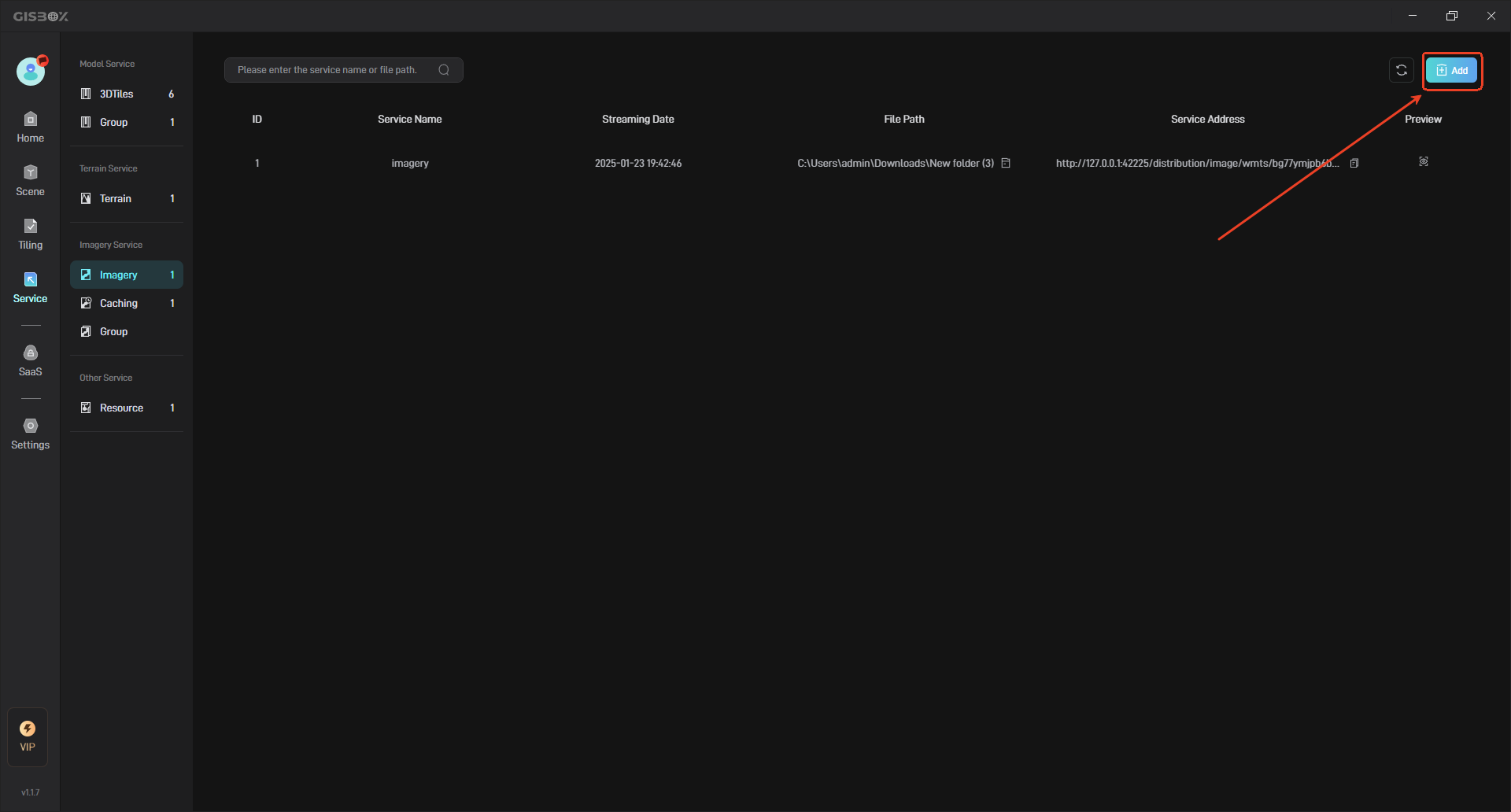

In the “General Imagery” interface, click the “Add” button in the upper right corner, as shown below:

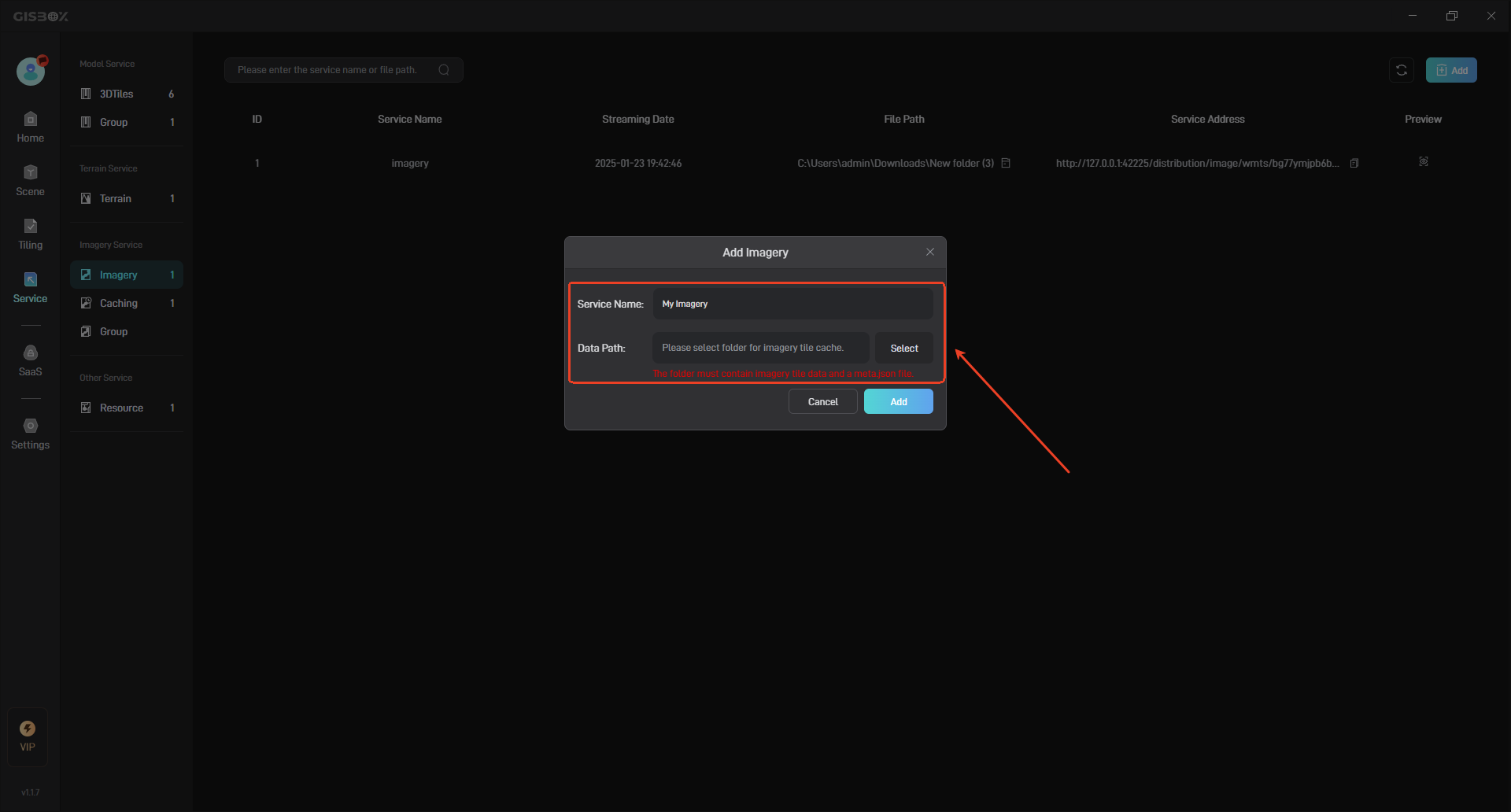

In the pop-up “Add General Imagery Data”, select the local imagery data file, as shown in the following figure:
Then click the “Confirm” button, and the corresponding imagery service will be generated in the general imagery.
2. Manage Imagery Services
2.1 Configuration Item Description
| Configuration item | Description |
|---|---|
| Number | Each added imagery service will have its own number and will be sorted in the order of release time. The earlier the release time, the larger the number. |
| Service Name | You can customize the service name. The default service name is the name of the file imported when the imagery is sliced. |
| Release time | Indicates the time when the imagery service is released. |
| File Path | Indicates the file path where the imagery service is saved locally. |
| Service Address | The imagery service address can be opened in the browser to view the effect of the imagery service. |
2.2 Rename Imagery Service

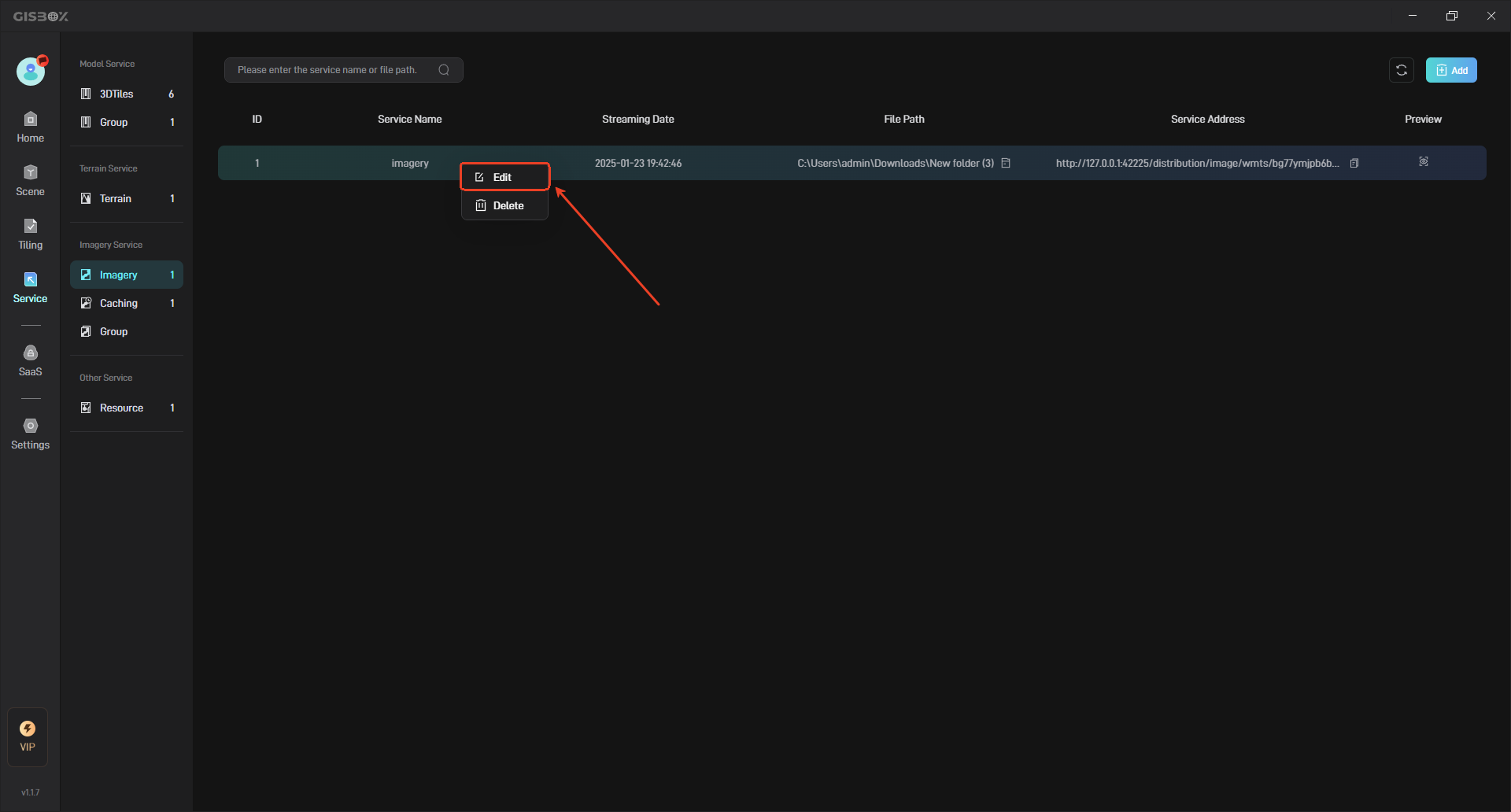

Move the mouse to the imagery service that needs to be renamed, right click, and then click “Edit” to rename the imagery service.

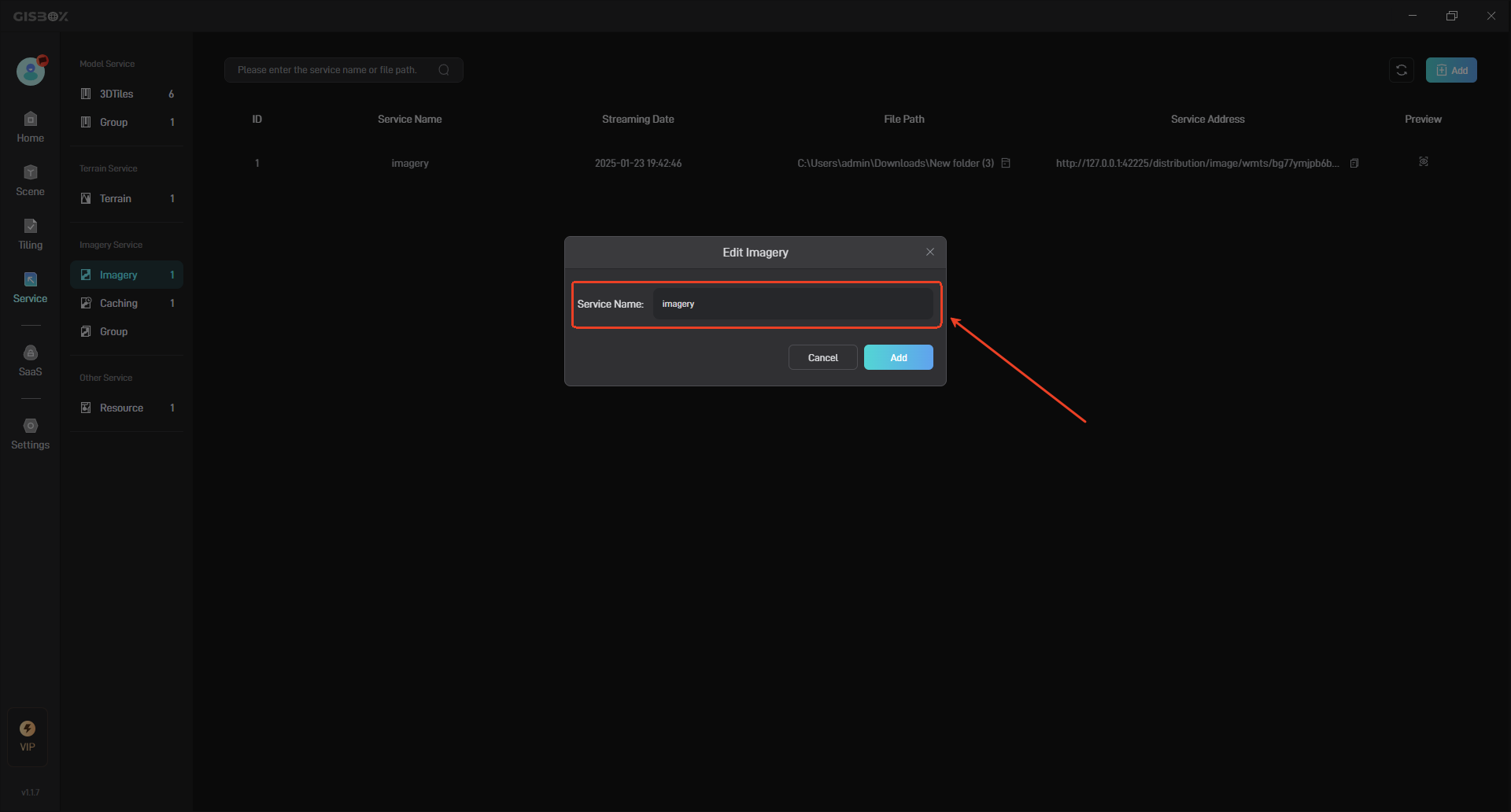

Enter a new name and click the “Confirm” button to complete the renaming, as shown below:
2.3 View File Path

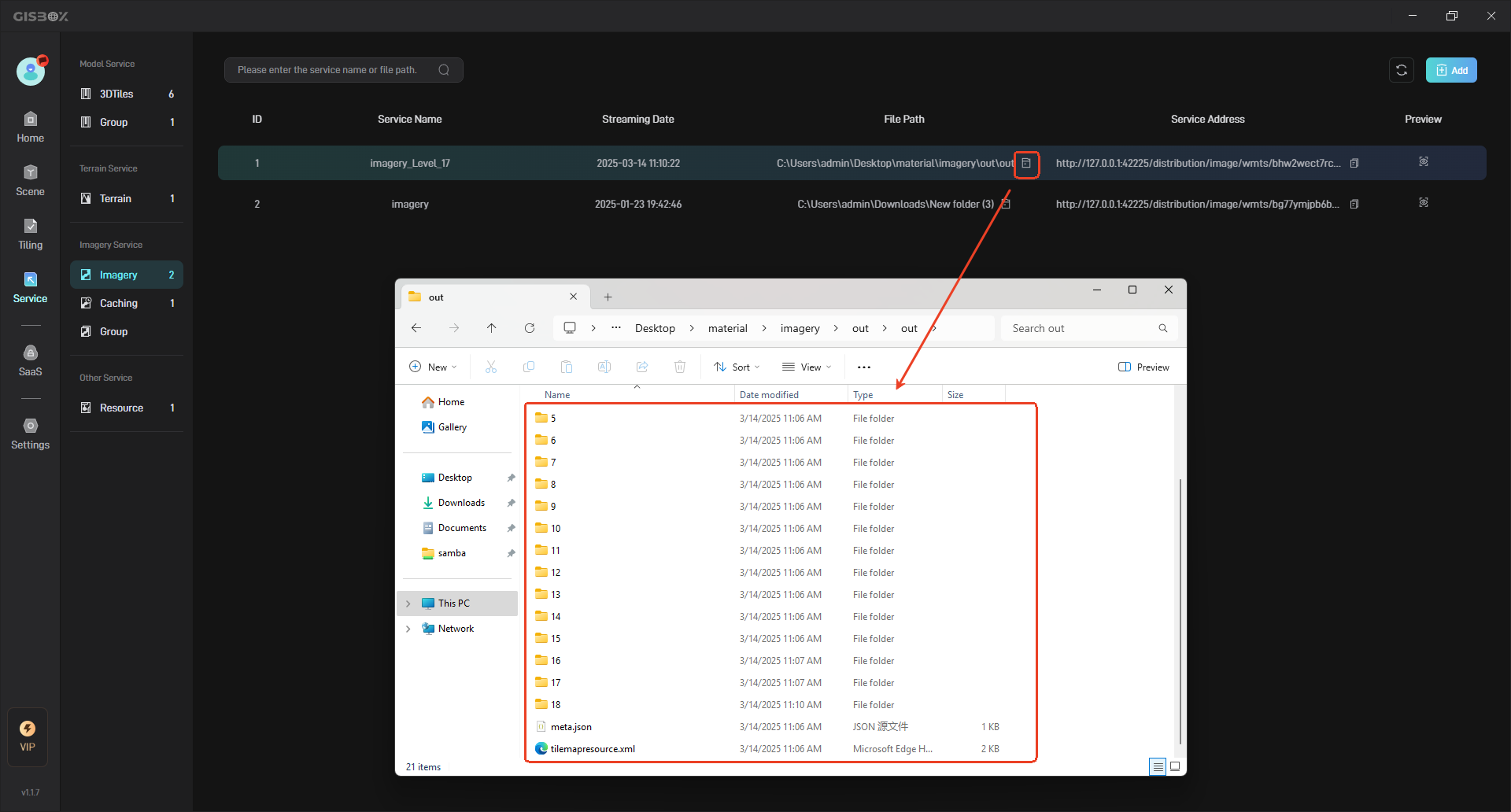

Click the “Folder” button in the file path to view the local file path of the imagery service, as shown in the following figure:
2.4 View Imagery Service

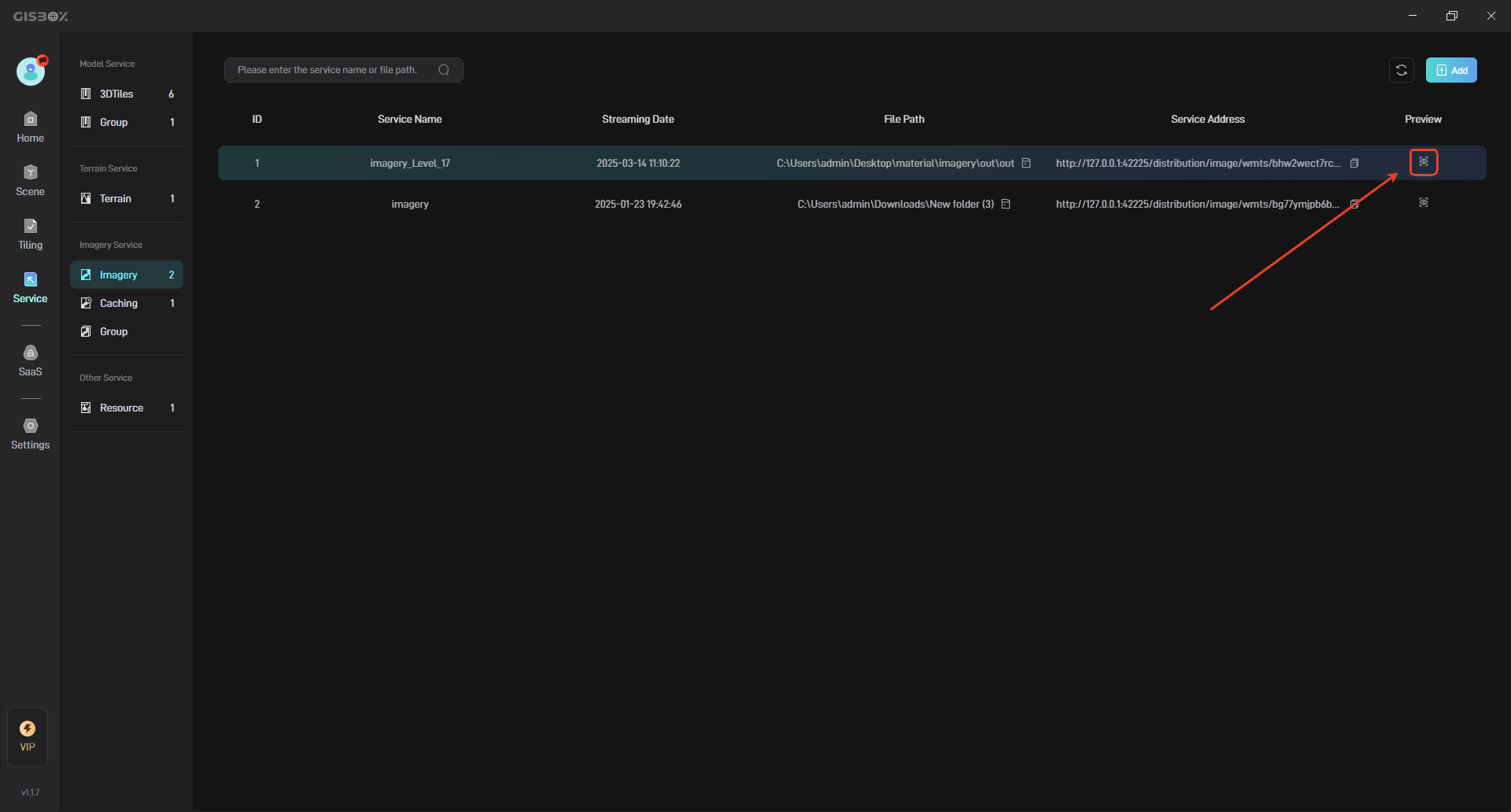

Click the “View” button to open and view the imagery service in the browser, as shown in the following figure:

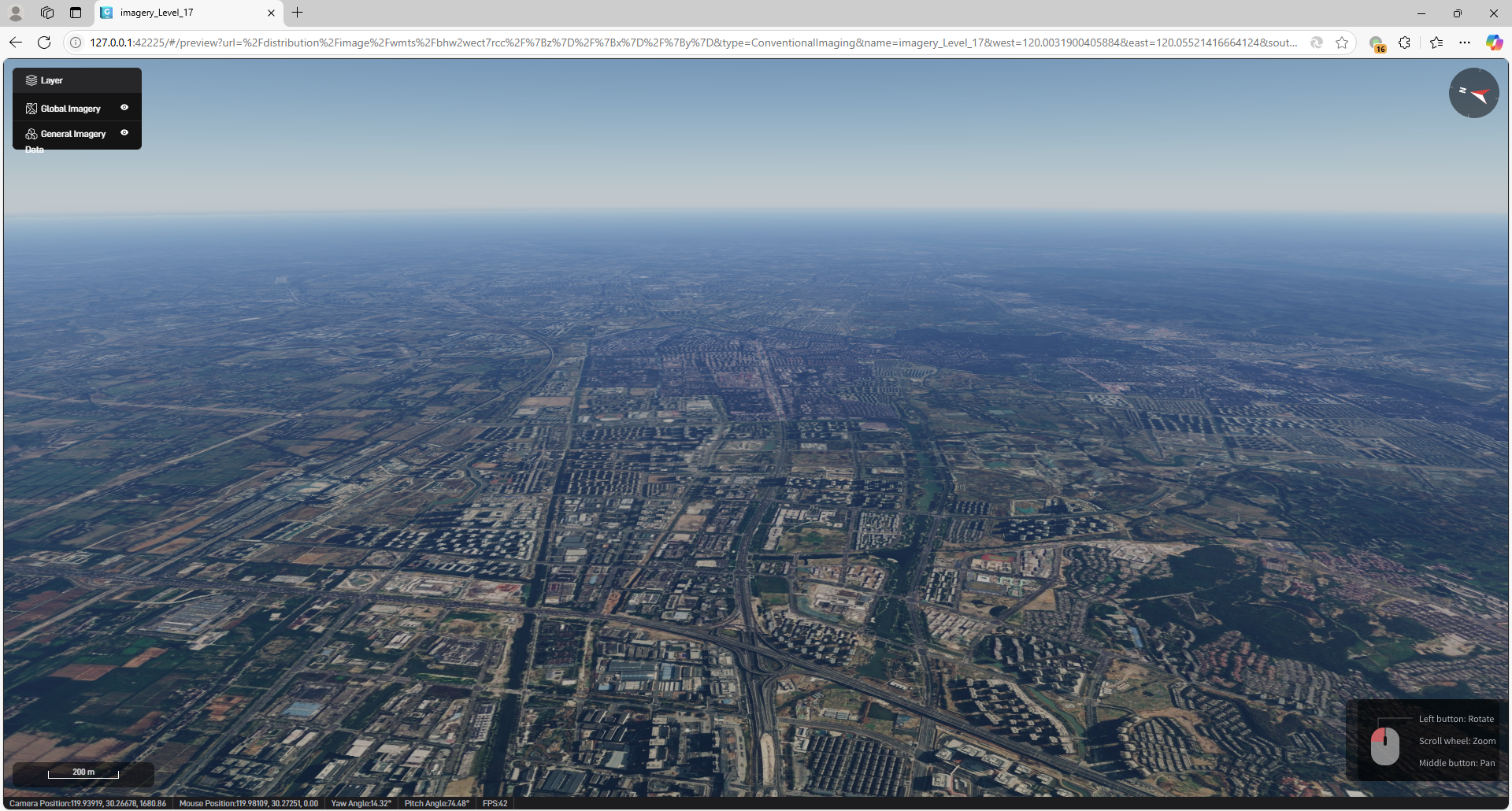

The imagery service opened in the browser is shown in the following figure:
2.5 Delete Service
Select the imagery service you want to delete, and then click the “Delete” button to delete the selected imagery service.
You can select multiple/all imagery services, and then delete all selected imagery services with one click.
2.6 Refresh Service

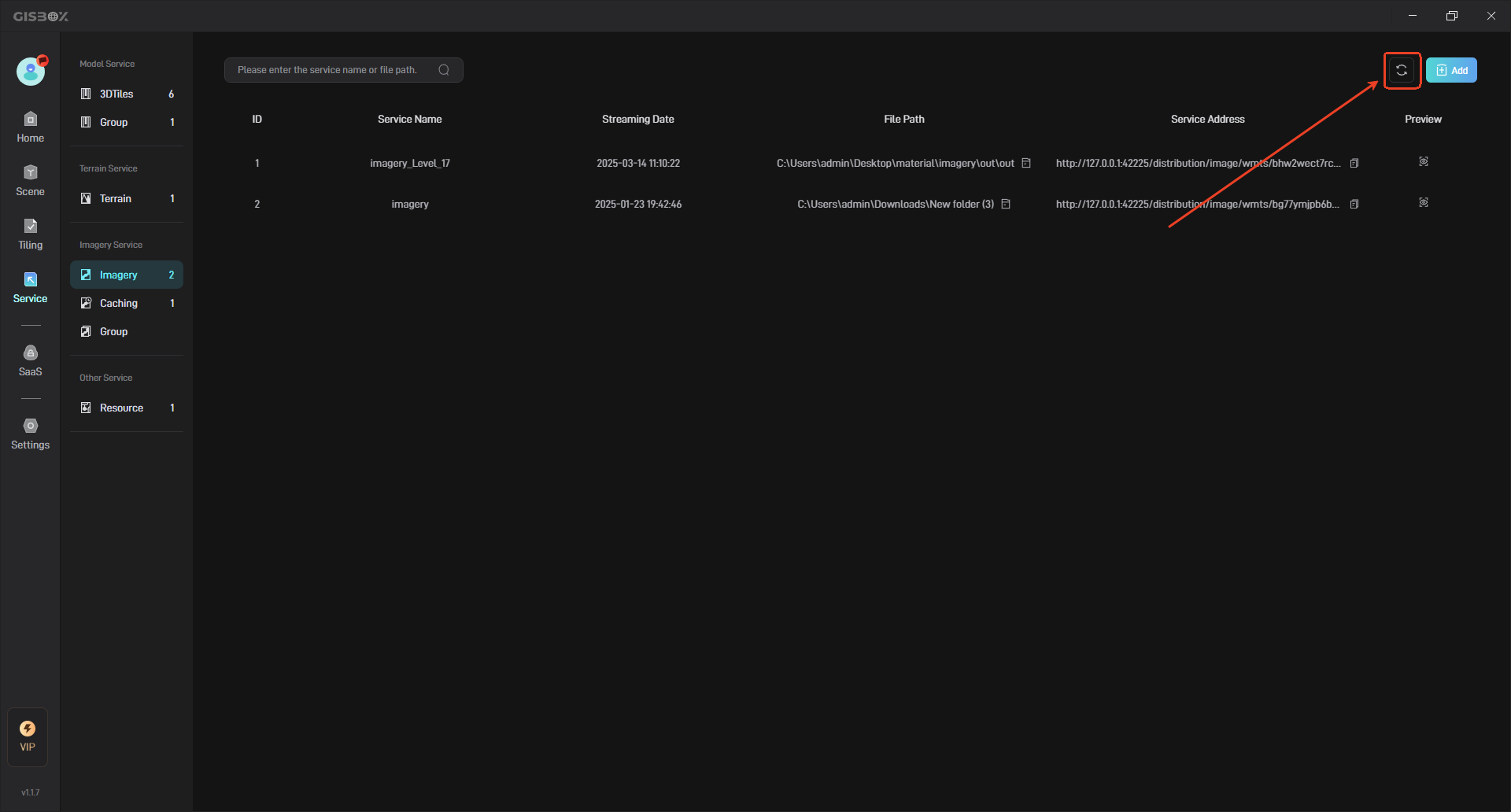

When a new imagery service is added but is not displayed in the “General Imagery” interface, you can click the “Refresh” button in the upper right corner to load the newly added imagery service, as shown in the following figure:
